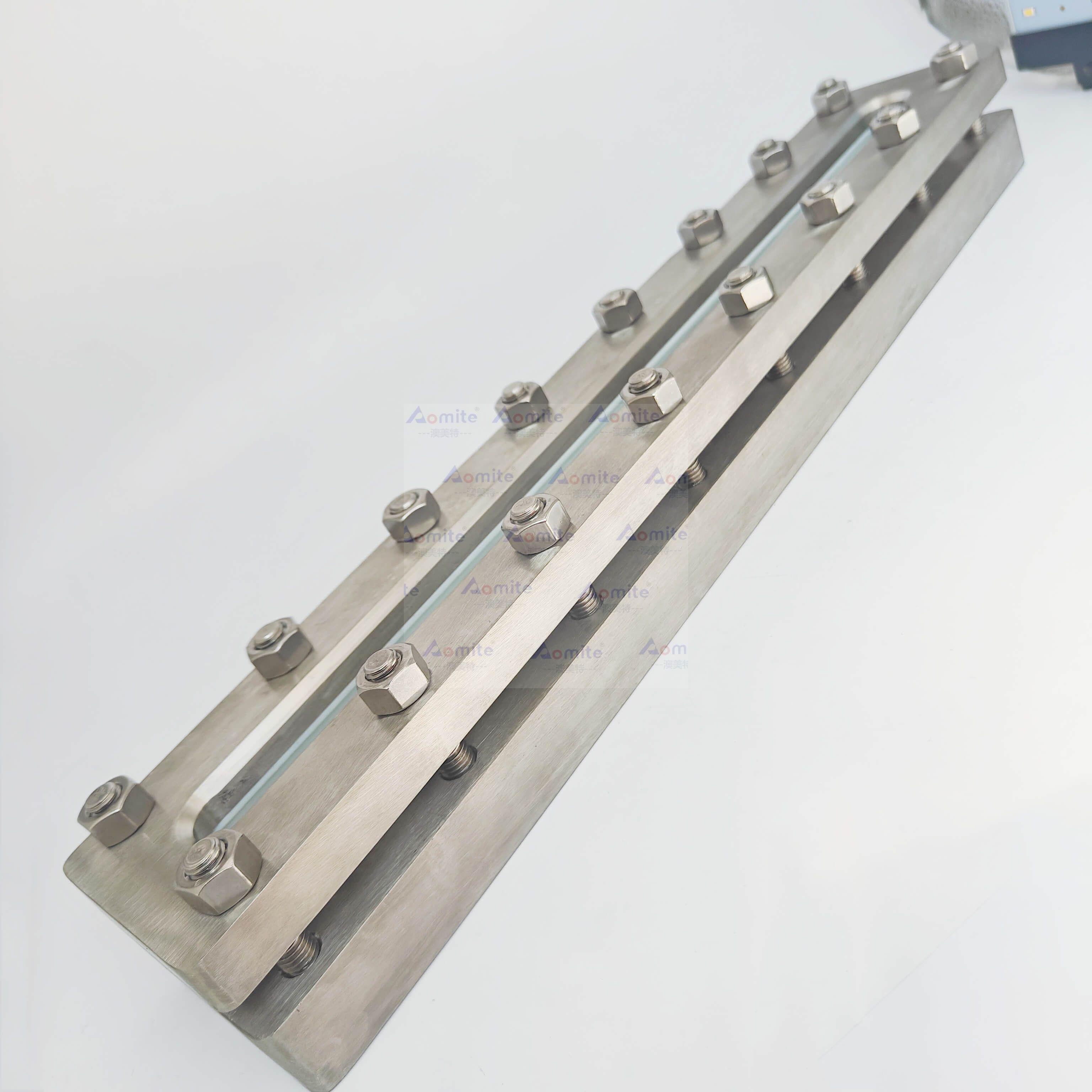

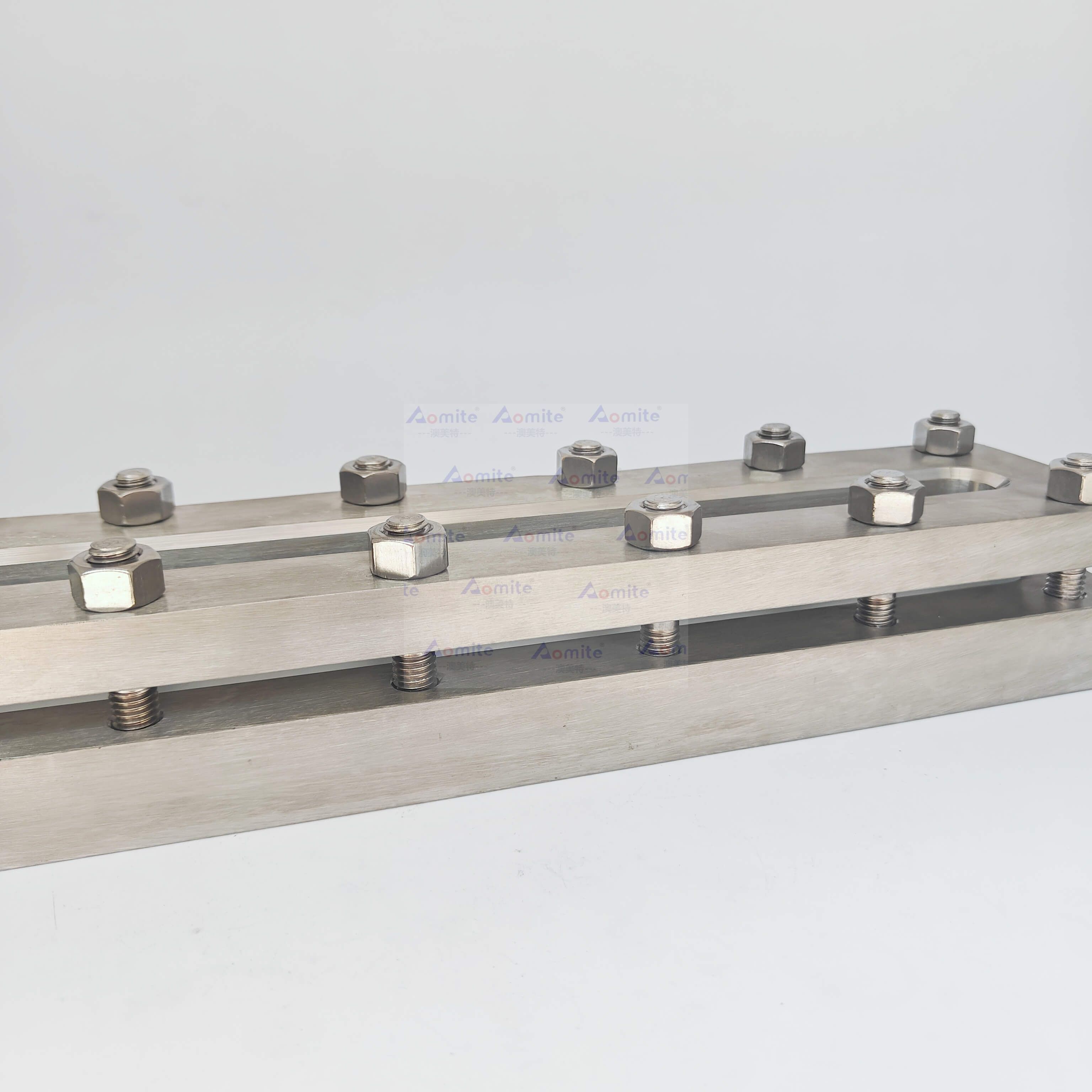

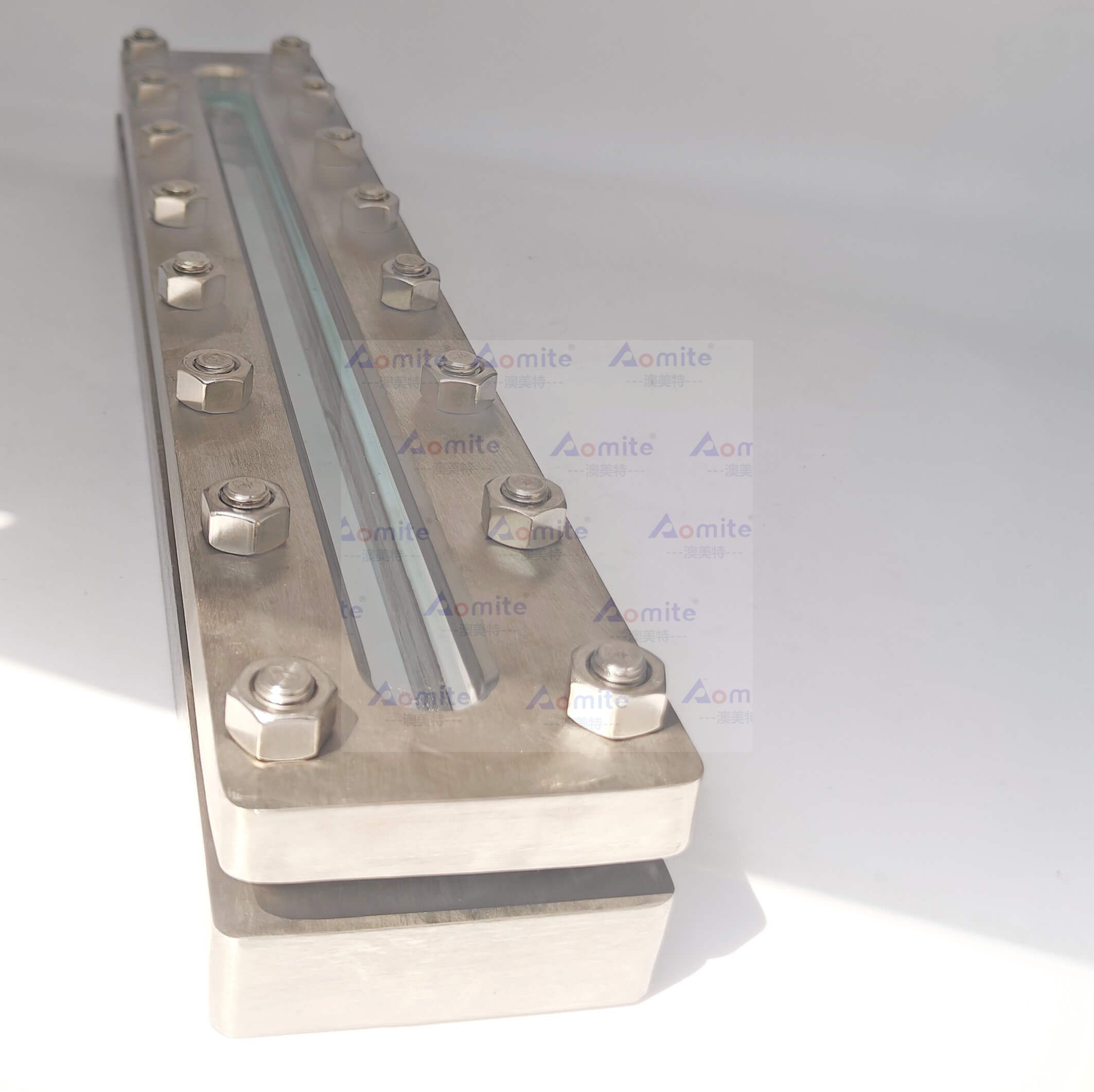

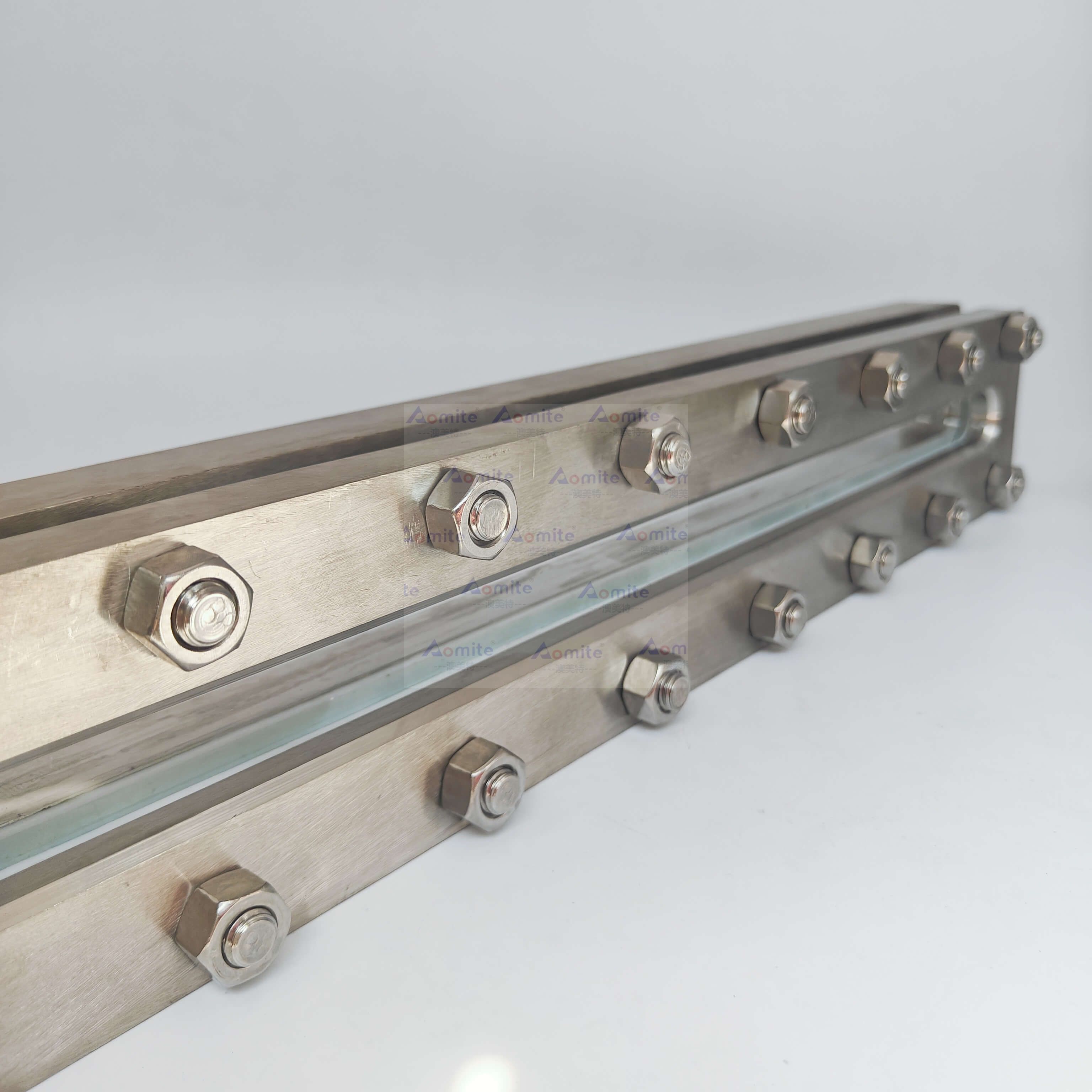

304 Stainless Steel Rectangle Oval Sight Glass - 80x300mm Square Flange Observation Window for Industrial Flow Monitoring

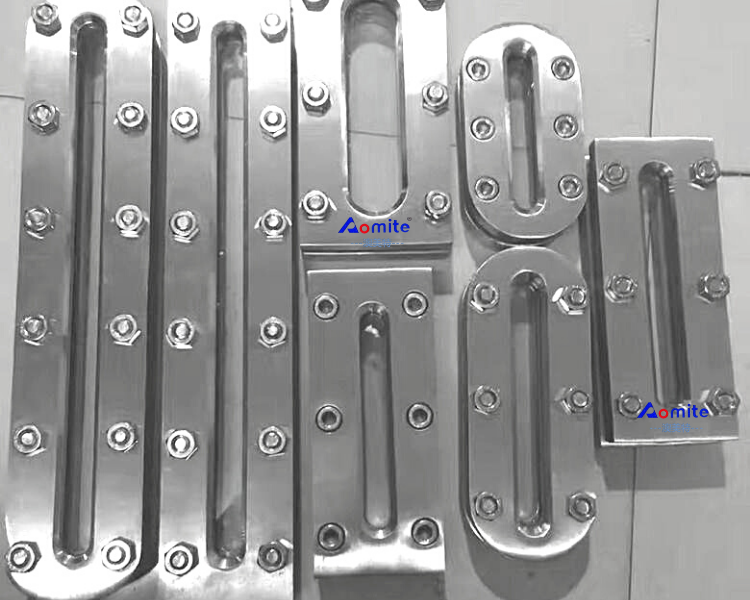

Food Grade Sight Glass Triclamp Sight Glass Stainless Steel 304/316L Welded Circular Flange Sight Glass

304 Stainless Steel Rectangle Oval Sight Glass - 80x300mm Square Flange Observation Window for Industrial Flow Monitoring


Size:	DN50
Material:	SS304
Availability:

Quantity:

Inquire Add to Basket

Model:
Sight glass001
Brand:
AOMITE

Applicatication

Flanged sight glass is comprised of stainless steel frameand glass.Through it,operator can observe the flowing of theliquid substance clearly and precisely in the fields of foodcosmetics,pharaceutical and fine chemicals.

Design and Features
Available from 2"-6"to DN50-DN150

Assemble flange with glass by using hexagon socket holts

Gasket material: PTFE

Material: AlSl304; AISI316L
Max Temperature: -10'C to 120°C
Max Pressure: 10Bar

Product Description

✅ Durable Construction & Material Integrity**

• Dual-material options: 304 stainless steel (corrosion-resistant) / Carbon steel (high-strength) frames
• 80x300mm standard size with 10mm tempered borosilicate glass (EN 1595 compliant)
• IP67-rated sealing: Withstands 15 bar pressure at 200°C for CIP/SIP environments

Optimized Observability Design**

• Clamped oval frame ensures zero leakage with ASME B16.5 flange compatibility
• 360° visible range: 120mm clear aperture for full-process monitoring
• Anti-fog coating: Maintains clarity in steam/humid conditions (ISO 15874 certified)

Multi-Industry Applications**

• Chemical plants: Acid/alkali flow verification in reactor vessels
• Food & beverage: Pasteurization line particle inspection
• Pharmaceutical: Tablet coating uniformity checks

⚡ Operational Advantages**

• Quick-release clamps: 5-minute installation/removal for maintenance
• Interchangeable gaskets: EPDM/Viton/PTFE options for media compatibility
• 3-year warranty: Backed by ISO 9001-certified manufacturing

Custom sizes (DN25-DN300) and explosion-proof versions available – Request CAD drawings for your piping system integration.

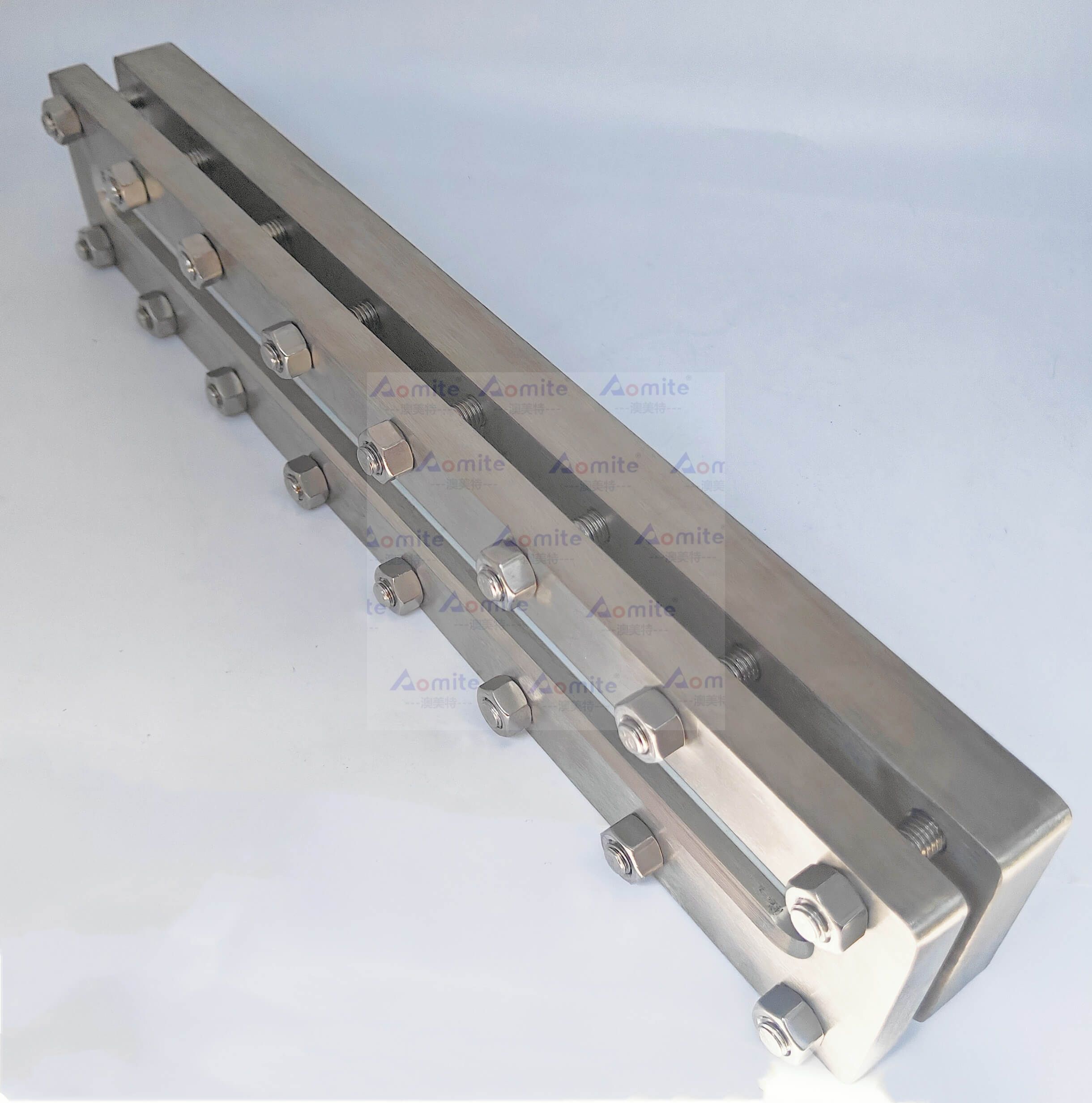

1742526711710_IMG20250321105456

Specification

item	value
Warranty	1 year
Customized support	OEM, ODM
Place of Origin	China
	Zhejiang
Brand Name	aomite
Technics	Forged
Connection	Welding/Clamp/Flange
Shape	round
Head Code	round
Product name	stainless level food grade long sight glass
Material	Stainless Steel 304/316L
Standard	ANSI, GB, JIS, DIN
Application	Beer,food,dairy,chemical equipment etc
