18/22/28/40/52/65/70/85mm 316L Sanitary Tri-Clamp Ferrules | ISO-Certified Food-Grade Welded Pipe Connectors for Pharma/Dairy/Beverage Systems | Wenzhou Aomite

18/22/28/40/52/65/70/85mm 316L Sanitary Tri-Clamp Ferrules | ISO-Certified Food-Grade Welded Pipe Connectors for Pharma/Dairy/Beverage Systems | Wenzhou Aomite


Size:	DN15 1/2" DN20 3/4" DN25 1" DN32 1.5" DN40 DN50 2" DN65 3" DN80 DN100 4" DN125 DN150 DN200 DN250
Availability:

Quantity:

Inquire Add to Basket

Model:
501G26
Brand:
AOMITE
Code:
501G26-1-2-3

⚙️ ISO/DIN/3A-Certified Clamp Union Design
• Engineered with forged 304/316L stainless steel (1.35-2mm thickness) for superior corrosion resistance in CIP/SIP environments

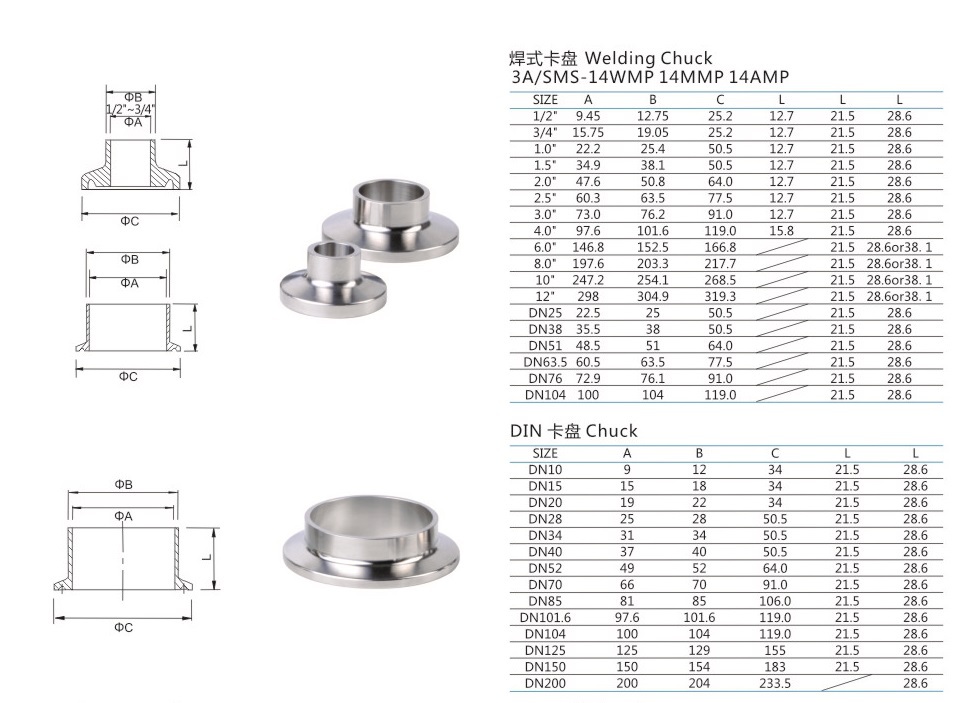

• Available in 3 industry-proven lengths (12.7mm/21.5mm/28.6mm) to accommodate from DN10 to DN250 pipeline configurations
• Welded connectivity ensures zero leakage risk, exceeding EHEDG hygienic equipment standards

Product Description

Parameter	Details
Weld Port Diameter	18/22/28/40/52/65/70/85mm
Material Standard	ASTM A270 316L (304 optional)
Surface Finish	Ra≤0.8μm Electropolished
Working Pressure	10 bar @ 150°C
Certifications	ISO 2852, 3-A 54-07
Connection Type	Tri-Clamp DIN 32676
Compatible Media	Steam, CIP/SIP fluids, solvents

▌ Application Scenarios (Keyword-Rich Paragraph)
"Engineered for ultra-sanitary fluid transfer systems, these large-diameter welded ferrules are ideal for:

Pharmaceutical: CIP (Clean-in-Place) pipelines, bioreactor connections.
Dairy & Beverage: Pasteurization systems, aseptic filling lines.
Biotech: Fermentation tank interfaces, purification skids.
Cosmetics: High-purity ingredient transfer lines.
Compliant with FDA 21 CFR 177.2600 for food contact, ensuring zero contamination risk in DN15-DN80 pipelines."
