Product Description
| Product Name: | Food Grade Stainless Steel Sanitary Mini Weld Vertical Check Valve |
| Valve Body Material: | 1.4435/1.4301, SS304/SS316L(Forged) |
| Seal Material: | EPDM (standard) |
| Surface Finishing | CNC Ra,0.8 um |

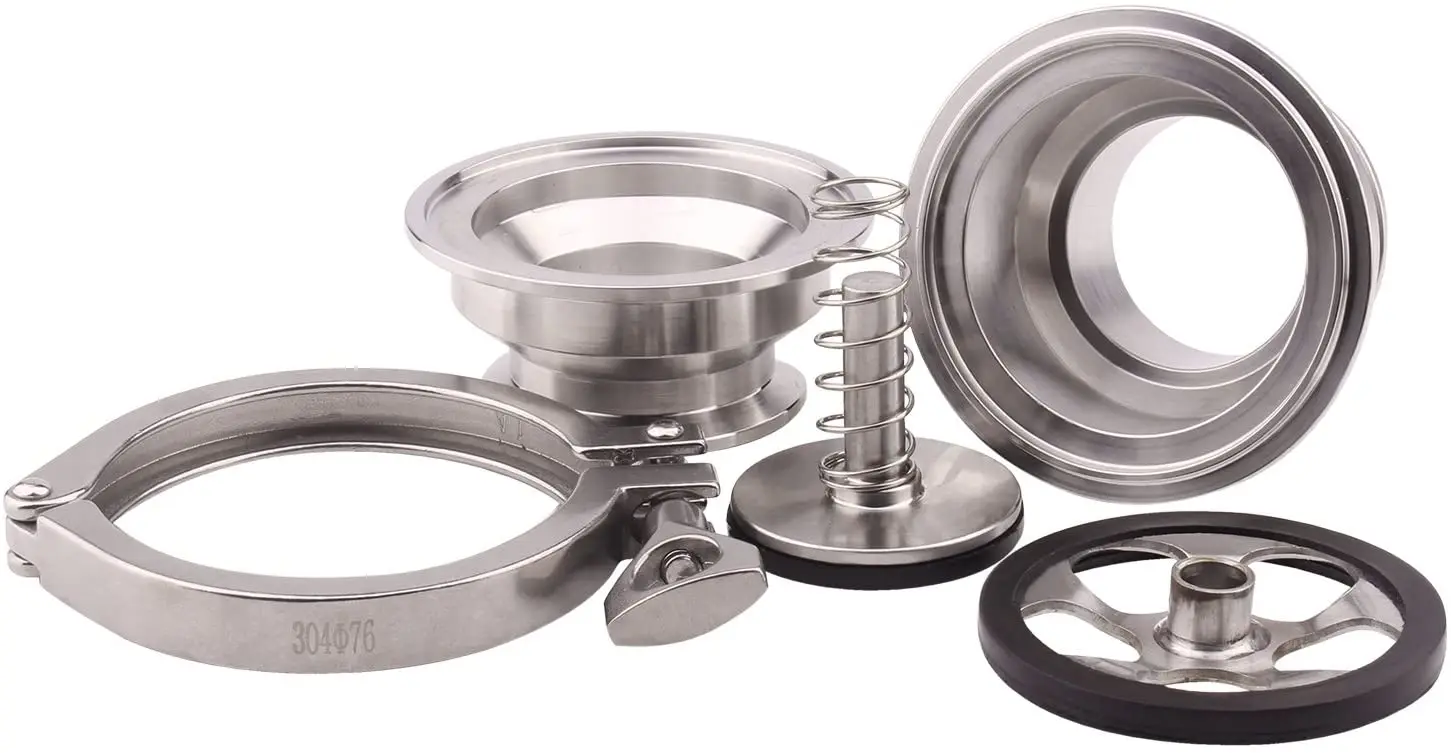

| Operating Principles: | When pipeline pressue is bigger than valve spring pressure, the valve will open, when pipeline pressure is less or equal to the spring pressure, the valve will be closed. |
| Max Working Pressure: | 10Bar/145 PSI |
| Opening Pressure: | 0.3 bar(DN25),0.2 bar(DN32/40),0.1 bar(DN50 to DN100), |
| Max. Working Tem.: | 120 degree C ( can be customized ) |
| Availably Size: | 3/4"-3",DN15-DN65 |
| Features |
|
|
|
|
|
|
|
|
|
|
| EN10204-3.1 B Mill cert is offered |
| CE |
| Availably standard: | DIN/SMS/RJT/ISO/IDF |
| Options | Gasket: EPDM, silicone or Viton |
| Connection:weld,clamp,thread, |
| Certificate: | CE |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
|
