Key Considerations for Selecting Liquid Cooling Valves ——A comprehensive guide for engineers and procurement professionals

As high-density computing, AI workloads, and new energy applications continue to push thermal management requirements to new limits, liquid cooling has emerged as the definitive solution for heat dissipation in servers, data centers, electric vehicle batteries, and power electronics. At the heart of every liquid cooling system lies a network of valves that regulate coolant flow, maintain pressure stability, and ensure system safety.

But selecting the right liquid cooling valve is far more nuanced than choosing a traditional industrial valve. Liquid cooling valves operate in unique environments characterized by high heat density, limited spatial envelopes, and stringent low-leakage requirements. A poorly selected valve can lead to hotspots, equipment throttling, unplanned downtime, or—in the worst case—catastrophic coolant leakage that destroys sensitive electronics.

This guide outlines the critical factors engineers and procurement professionals must consider when selecting liquid cooling valves for their thermal management systems.

---

## 1. Port Specifications and Connectivity

The first and most fundamental consideration is ensuring physical compatibility between the valve and your existing system infrastructure.

Common port types in liquid cooling applications include:

- G1/4 threads – British Standard Pipe Thread with an outer diameter of approximately 13.2 mm. This is the industry standard for many PC and server liquid cooling loops. G1/4 fittings are widely available and offer reliable threaded connections.

- Push-to-connect fittings – Designed for quick, tool-free installation with soft tubing. Common compatible tubing outer diameters include 6 mm, 8 mm, 10 mm, and 12 mm.

- UQD (Universal Quick Disconnect) connectors – An OCP-standard quick-connect solution pioneered by Intel for AI server liquid cooling applications. UQD fittings feature a flat-face design that minimizes drips during disconnection and reduces air bubble introduction during connection.

Selection tip: Always verify that the valve's port specification matches your existing fittings and tubing. Mismatched connections are a common source of leaks and system failures.

---

## 2. Flow Coefficient (Cv / Kv Value)

The flow coefficient indicates the valve's flow capacity when fully open—essentially, how much coolant can pass through under a given pressure differential.

Key considerations:

- Cv is expressed in US gallons per minute (GPM) at 60°F with a 1 PSI pressure drop.

- Kv is expressed in m³/h and can be converted: Kv = 0.865 × Cv, or Cv = 1.156 × Kv.

For control valves (valves that modulate flow based on system feedback), the turndown ratio—the valve's ability to maintain stable control at low flow rates—is equally important. An excessively high Cv value can make regulation overly sensitive at small opening angles, causing flow instability and temperature oscillations.

Selection tip: Perform detailed flow analysis based on actual operating conditions, not just design capacity. Select a valve whose Cv/Kv rating places your required flow within the valve's optimal control range—typically between 20% and 80% of the fully open rating.

---

## 3. Material Compatibility

The valve body and seals must be chemically compatible with your specific coolant. Incompatible materials can degrade, swell, or corrode, leading to leakage, contamination, or complete valve failure.

Valve body materials:

| Material | Applications |

| 316L Stainless Steel | Preferred for long-term operation with water-based coolants; excellent corrosion resistance |

| 304 Stainless Steel | Suitable for many water-based applications; 316L recommended for extended service life |

| Brass | Common in PC cooling loops; verify compatibility with your specific coolant |

| Engineering Plastics (PPS, PVDF) | Used in specialized applications requiring non-metallic wetted parts |

Seal materials:

| Seal Material | Compatible Coolants |

| EPDM | Water-glycol mixtures, water-based coolants |

| FKM (Fluoroelastomer / Viton) | Dielectric coolants, glycol/water mixtures |

| FFKM (Perfluoroelastomer) | Fluorinated fluids (required for chemical resistance) |

| Silicone | Specific applications; verify compatibility |

Critical note: Fluorinated fluids typically require FFKM seals or specialized plastics; standard EPDM or FKM may not provide sufficient chemical resistance. For mineral oil systems, specialized seal validation is required as some EPDM grades are incompatible.

Selection tip: When in doubt, conduct material compatibility soak tests before full-scale deployment.

## 4. Leakage Rate

In liquid cooling—particularly for servers and data centers—**leakage is a zero-tolerance issue**. A single seal failure can allow coolant to reach sensitive electronics, potentially destroying an entire rack of equipment.

What to look for:

- Double-seal designs – Valves used inside servers should feature dual O-rings or bellows seals at the valve stem.

- External leakage specifications – Reputable manufacturers provide quantified leakage rates, typically verified via helium leak testing. A typical specification is <1×10⁻⁶ Pa·m³/s. For data center applications, the most stringent requirement is Class VI leakage rating—the highest classification.

- Long-term reliability – Some valves are designed and tested to maintain leakage control after years of operational service.

Selection tip: Never compromise on leakage specifications for cost savings. The potential damage from a single leak far outweighs any upfront cost differential.

## 5. Torque and Operating Space

Liquid cooling valves are often compact devices with slender valve stems. Excessive tightening torque can easily snap the stem, rendering the valve inoperable.

Best practices for manual adjustment:

- Tighten gently until the valve seats, then back off by one-eighth of a turn.

- Never use excessive force to "crush" the valve closed.

- Consider the physical operating space—small form factor valves may have limited clearance for hand access or tooling.

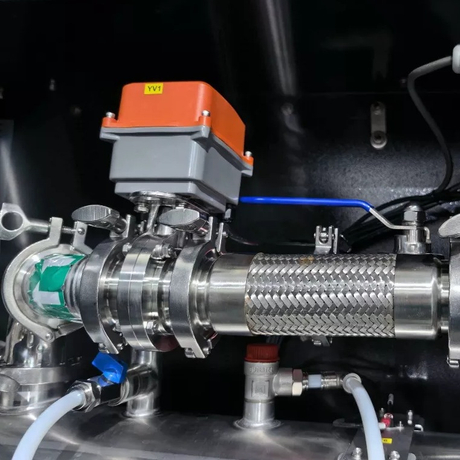

For actuated valves: Verify that the actuator's torque output is matched to the valve's requirements and that the control signal (e.g., 4–20 mA, 1–5V, or 2–10V) is compatible with your control system.

## 6. System Pressure and Temperature Ratings

While often overlooked, pressure and temperature ratings are critical for long-term reliability.

Key considerations:

- Server cold plates typically have a pressure tolerance of 0.6–0.8 MPa. Valves must maintain secondary-side operating pressure within 0.3–0.6 MPa to protect sensitive components.

- Account for water hammer effects and pressure spikes during pump startup and shutdown.

- Verify the valve's temperature rating against your operating range—some fluorinated fluid systems operate at sub-zero or elevated temperatures.

## 7. Certifications and Standards

For mission-critical applications, third-party certifications provide assurance of quality and safety.

- IEC 62368-1 – Safety standard for audio/video, information, and communication technology equipment.

- OCP (Open Compute Project) compliance – Increasingly important for data center applications.

- Helium leak testing – Verifies external leakage specifications.

Selection tip: For AI server and data center liquid cooling, prioritize components that meet OCP and IEC standards.

## Conclusion: Liquid Cooling Valves Are a Distinct Category

It is important to recognize that liquid cooling valves are not simply traditional industrial valves (gate, globe, or ball valves) repurposed for a new application. Rather, they represent a distinct class of valves developed specifically for unique application scenarios characterized by high heat density, limited space, and stringent low-leakage requirements.

When selecting liquid cooling valves, consider the complete picture:

| Factor | Why It Matters |

| Port specifications | Ensures physical compatibility with existing infrastructure |

| Flow coefficient | Determines whether the valve can deliver required flow without instability |

| Material compatibility | Prevents degradation, contamination, and failure |

| Leakage rate | Protects sensitive electronics from catastrophic damage |

| Torque and space | Prevents installation damage and ensures serviceability |

| Pressure/temperature ratings | Ensures reliable operation under all conditions |

| Certifications | Provides independent verification of quality and safety |
