Spray Cleaning Ball Stainless Steel 304 BSP Thread Rotary Cleaning Ball 1inch 53mm ball size Food Grade Clean Rotator

Spray Cleaning Ball Stainless Steel 304 BSP Thread Rotary Cleaning Ball 1inch 53mm ball size Food Grade Clean Rotator


Size:	1INCH 2INCH
Material:	SS304 SS316L
Connection:	Clamp Female thread Weld
Availability:

Quantity:

Inquire Add to Basket

Model:
AMT0036

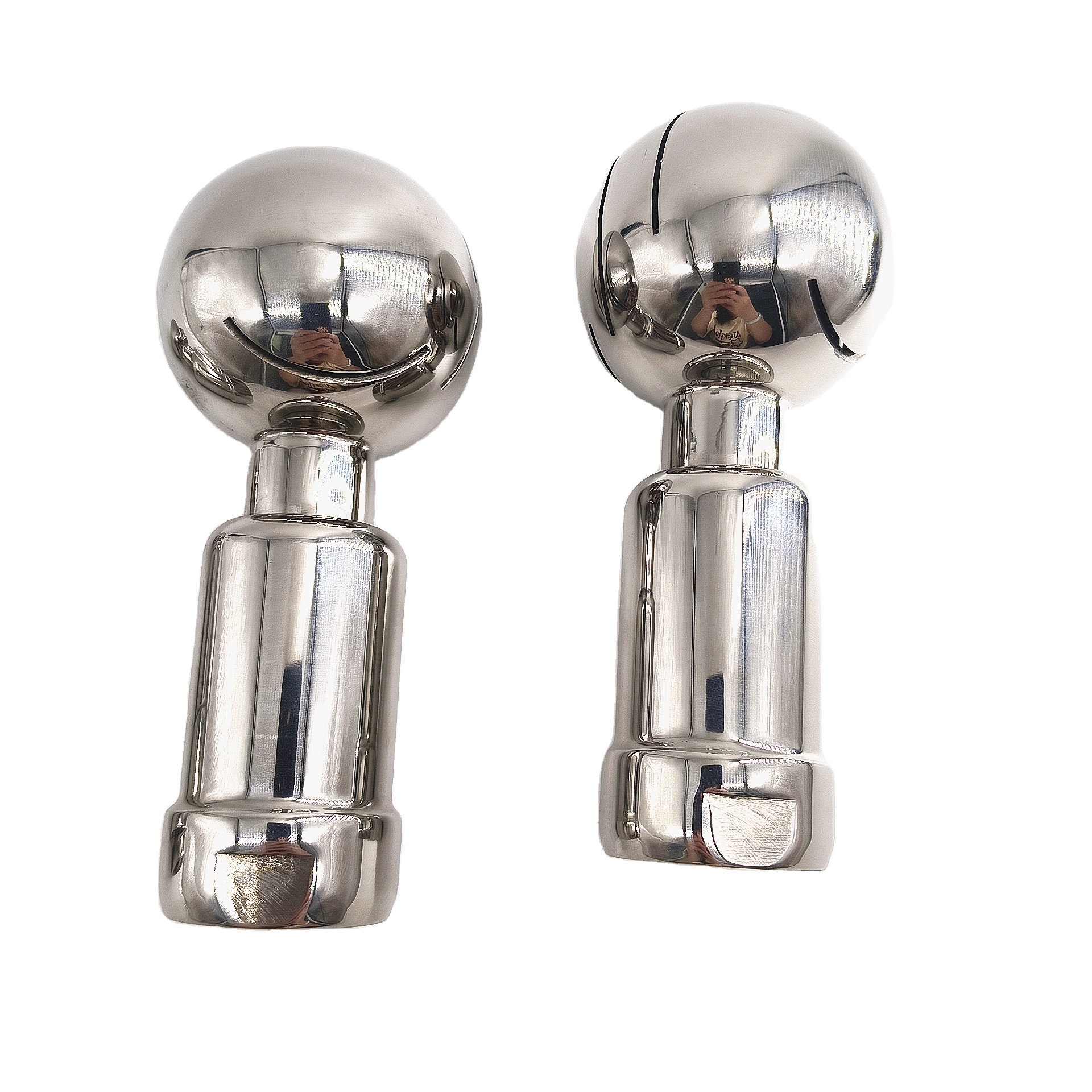

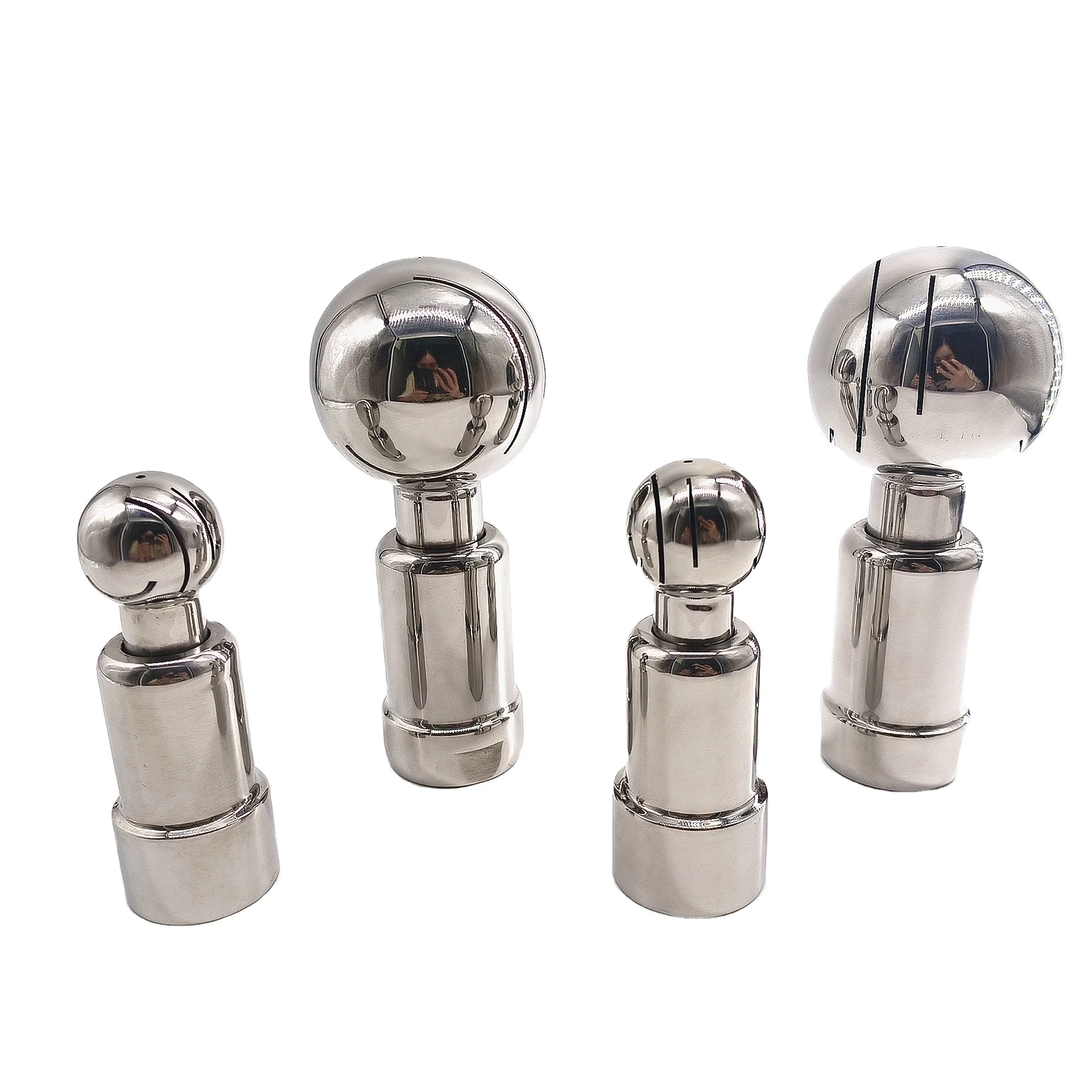

Sanitary stainless steel rotating cleaning ball, also known as stainless steel cleaning ball, tank cleaning ball, tank washer or spray ball, is a rotating nozzle used to clean storage tanks, reactors and containers.

It has the following characteristics:

- Material: usually 304, 316, stainless steel materials, with good corrosion resistance.

- Structure: The head is round with many small holes for spraying clean water. Double ball bearings are used in its rotating head.

- Working principle: The automatic rotation is driven by the reaction of the nozzle spraying water. The amount of washing liquid used under low pressure is small, which is an effective alternative to traditional fixed spray balls.

- Product features: It has the advantages of simple structure, beautiful shape, quick disassembly and assembly, flexible operation, and low fluid resistance.

- Technical parameters: The working pressure is generally 1-3bar, the working temperature can reach 95℃, the ambient temperature can reach 140℃, the wet radius is 3m, and the spray cleaning radius (effective radius) is about 2m. The interface has welding, quick installation and threaded type.

- Application range: Widely used for effective cleaning in tanks in the fields of chemical, petroleum, electricity, pharmaceutical, beer, food, dairy beverages, cosmetics, water treatment and biotechnology.

Its specific technical parameters may vary depending on product specifications and manufacturers. When using, it is necessary to pay attention to selecting appropriate specifications and connection methods according to actual needs, and operate and maintain in accordance with relevant operating procedures to ensure the cleaning effect and normal operation of the equipment. At the same time, the condition of the cleaning ball should be checked regularly, and if damaged, it should be replaced in time.

Product Description

Product Features
*Brand	AOMITE
*Style	Spray type
*Material	Stainless Steel
*Material Type	SS304 or SS316L
*Technic	Forged
*Treatment	Mirror Polish, Matte
*Size of Ball	32mm, 53mm, 64mm, other
*Warranty	1 Year

Facade

Backside

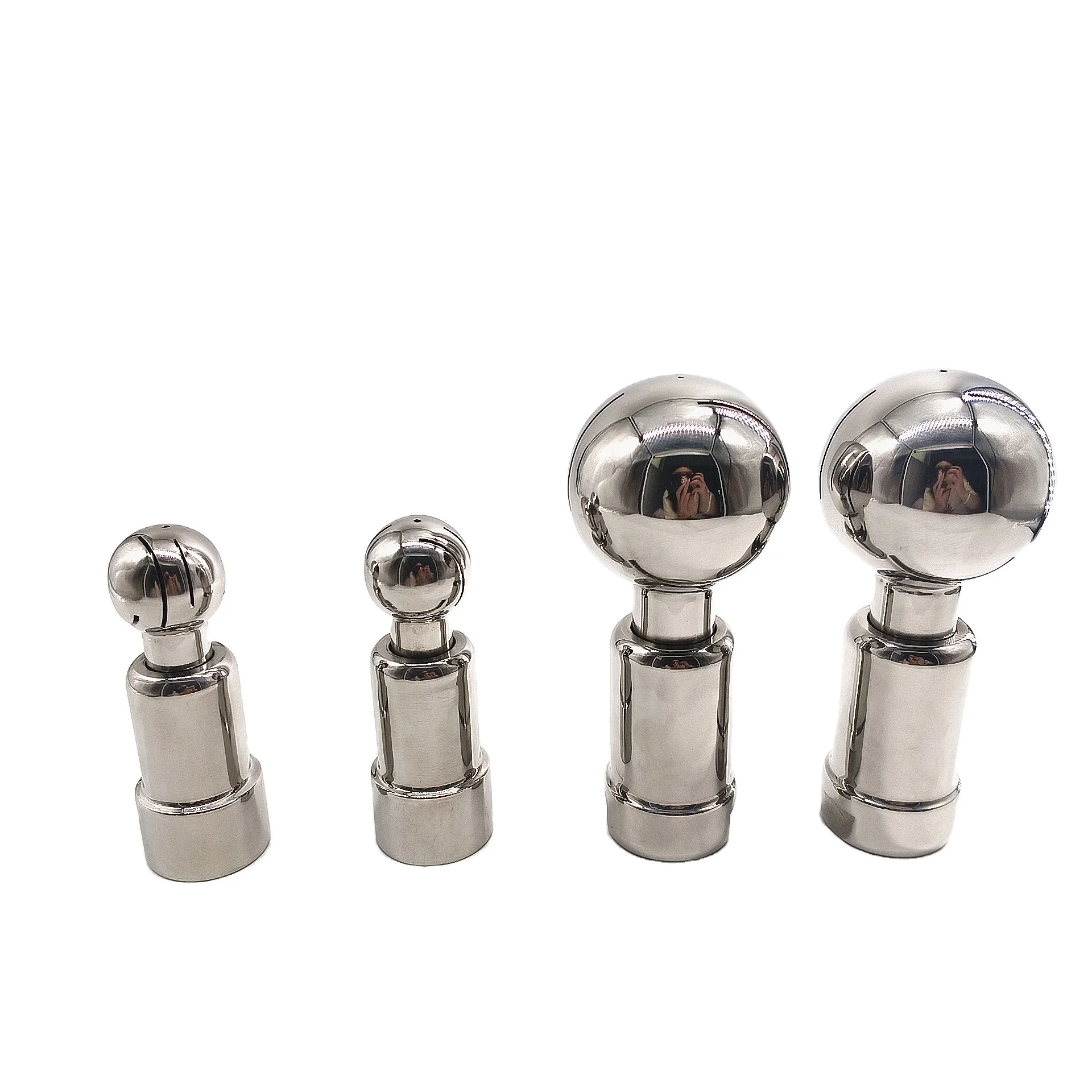

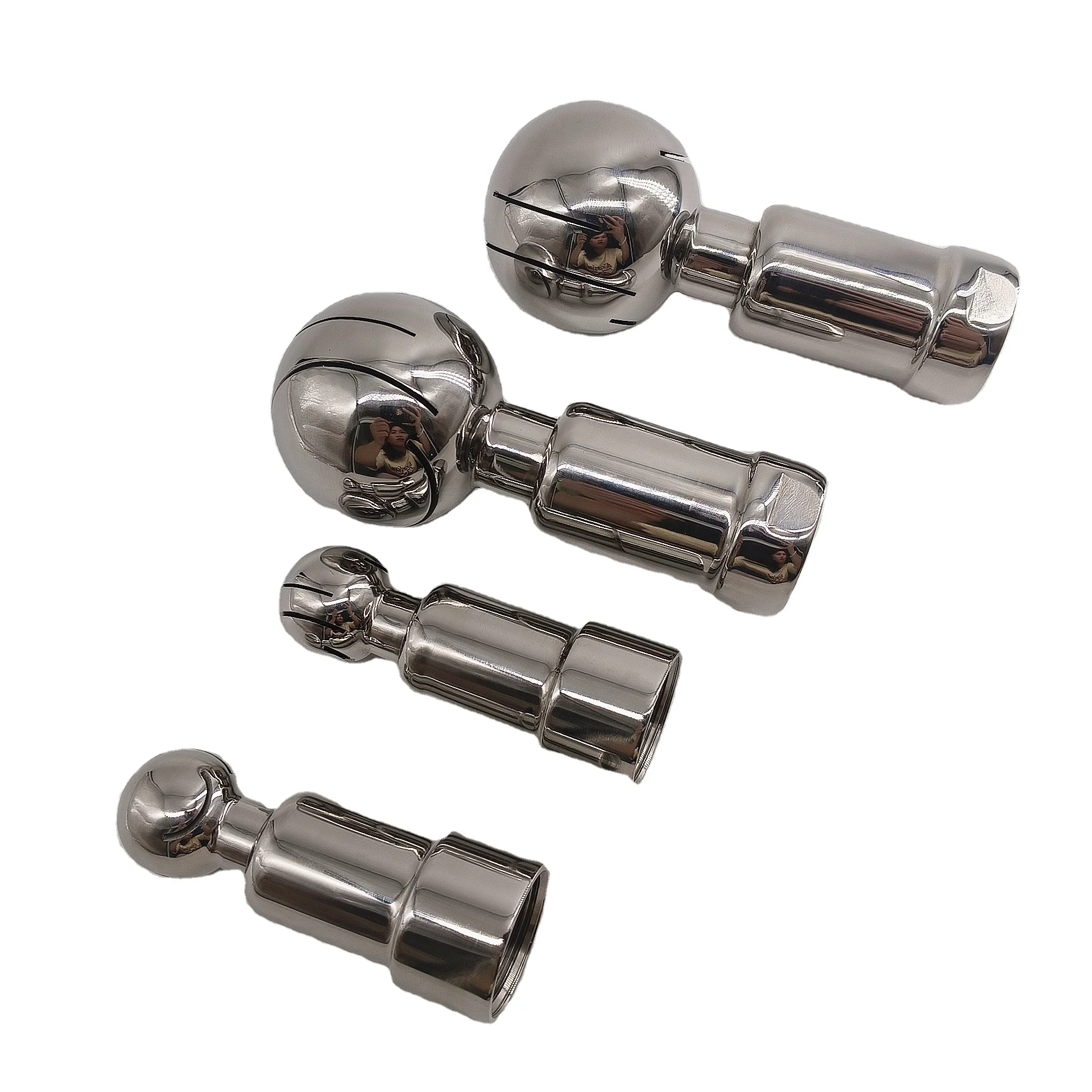

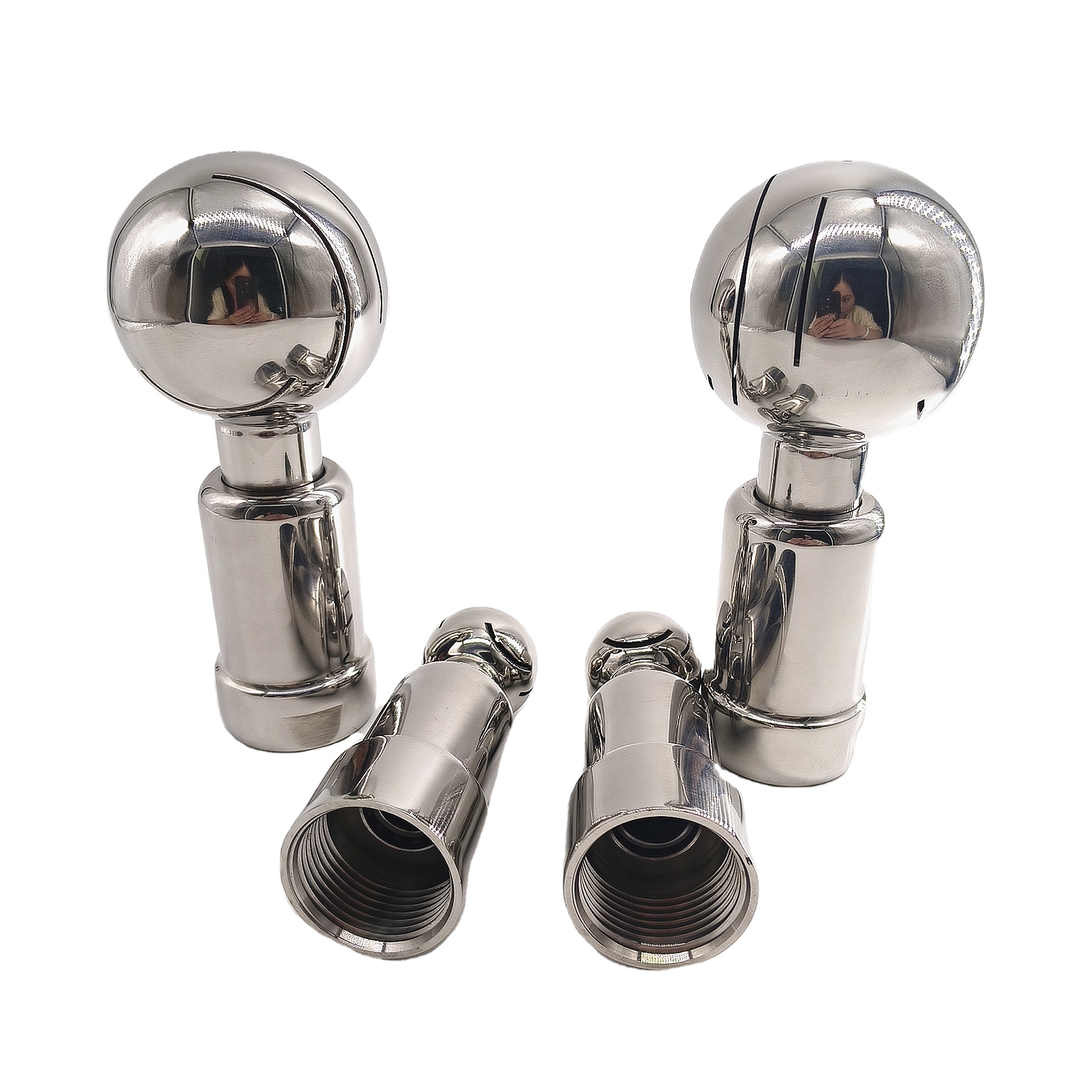

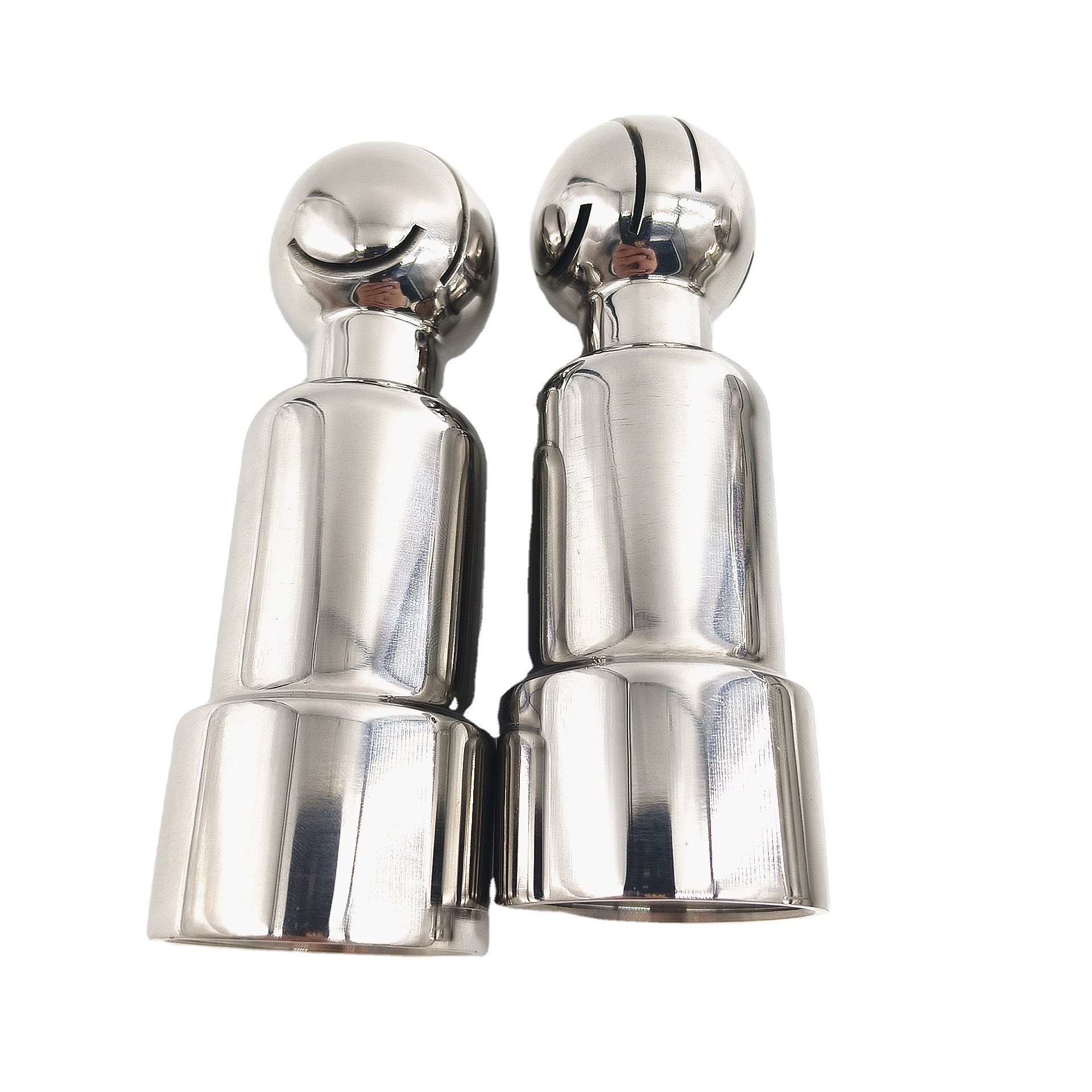

Detailed Images

Material Choose

Mirror Polish

Many Type of Cleaner

Related Products

Packing & Shipping

Prepare before Delivery

1. Cleaning the semi-material and produce the products
2. Testing the products (ensure that customers receive high-quality products)
3. Packed in plastic bag (protect the products)
4. Packed in small carton case (protect the goods)
5. Packed in big carton case
6. Packed on wooden case by express, sea or by air

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.

Are you trading company or manufacturer ?
We are a manufacturer who specialized in stainless steel valves for more than 20 year.

How about the after-sales service?
Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.

How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.
