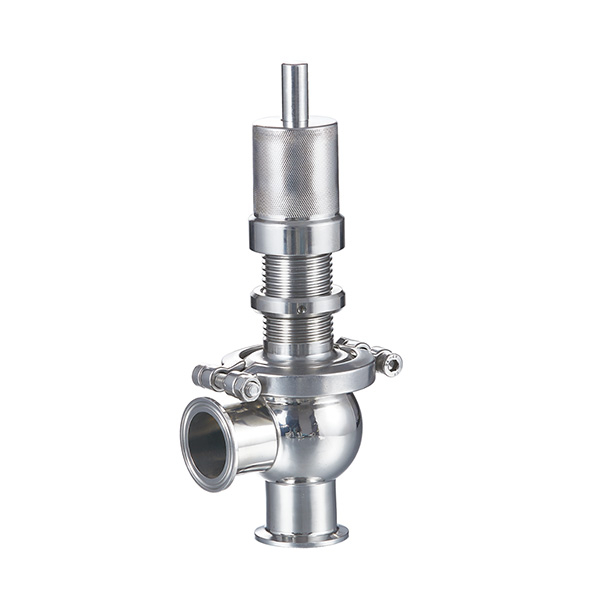

AOMITE sanitary adjustable spring loaded 0 to 6 bar pressure relief over flow safety valve


Size:	DN25 DN32 DN50
Availability:

Quantity:

Inquire Add to Basket

Model:
AMTPRVOVERFLOW
Brand:
AOMITE
Code:
AMTPRVOVERFLOW001

The adjustable spring loaded pressure relief valves also called sanitary safety valve are designed as pressure relief and by-pass valves to protect lines, pumps and other process equipment from damage caused by plant pressure surges.
sanitary safety valve are designed as pressure relief and by pass valves to protect lines, Pumps, and other process equipment from damage caused by plant pressure surges. Under normal operating conditions the stainless steel pressure safety valve remains closed.
The safety valve is adjusted using the spring loader nut to relieve at a specific set pressure selected by the plant operator in order to avoid plant damage, If the line pressure exceeds the valve set pressure the valve will open relieving flow and reducing the ling pressure.
Several spring options are available to provide different set pressure adjustment ranges to a maximum of 10 bar.

Parameter

Product Description

overflow diaphram valve brewery sanitary worm gear valves

Product details

Material	Stainless Steel AISI304, AISI316L
Pressure	0-10bar
Working temperature	-20~130 Degree C
Surface Finish	Sand blasting type,or mirror type
Product Keywords	overflow valve,sanitary diaphram valve,brewery sanitary worm gear valves

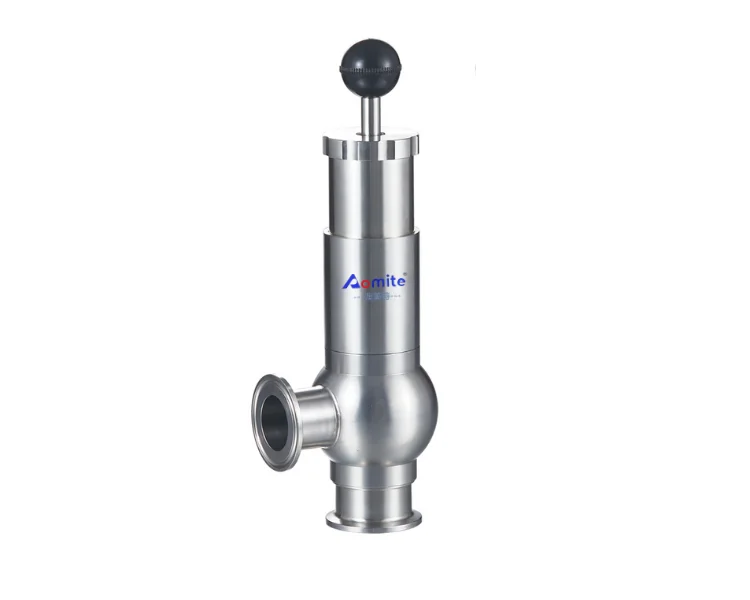

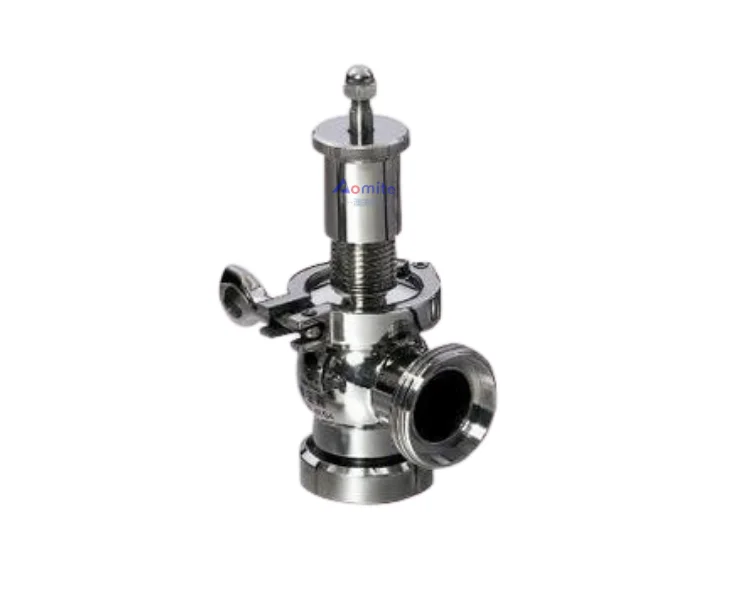

0-3.5bar stainless steel sanitary safety valve relief valve TC exhaust pressure regulating overflow valve

Company Information 0-3.5bar stainless steel sanitary safety valve relief valve TC exhaust pressure regulating overflow valve

ABOUT

Founded in 1998, Wenzhou Aomite Light Industrial Machinery Co., Ltd. is located in Tianzhong Road, Yongzhong Street, Longwan, Wenzhou.Company registered capital of 5.08 million RMB ,well equipped with various pieces of producing and processing equipments with high precision, such as CNC lathe and CNC machining centre. Furthermore, a well-established quality testing system and administration system are as well an essential part of our company. For many years, our company is devoted to many industrial fields including wine, milk, drinks, household necessities and others.such as clean pipeline system, the production of stainless valves and different types of connectors.

We have acquired rich experience by producing for well-known foreign manufacturers. We are now able to provide product service with high quality and high liability. All Aomite products can be made with different materials such as 304, 304L, 316L, and according to different standards as SMS, DIN, 3A, IDF, ISO, MACON and RJT. Aomite pays attention to creation. With updated designs, advanced technology and quality management, Aomite guarantees to provide customers with the best products and service.

Please feel free to contact us for further information.

Our Advantages 0-3.5bar stainless steel sanitary safety valve relief valve TC exhaust pressure regulating overflow valve

HIGH SPEED DELIVERY

For small order or samples, we may delivery in 2 days, for regular order, we will mostly delivery in 7-10 days.

HIGH STANDARD

We are committed to producing valves of the highest quality using precision production processes and a skilled and dedicated workforce. Every valve we make undergoes many of checks to ensure that safety, performance and build quality are outstanding, meeting our demanding standards.
