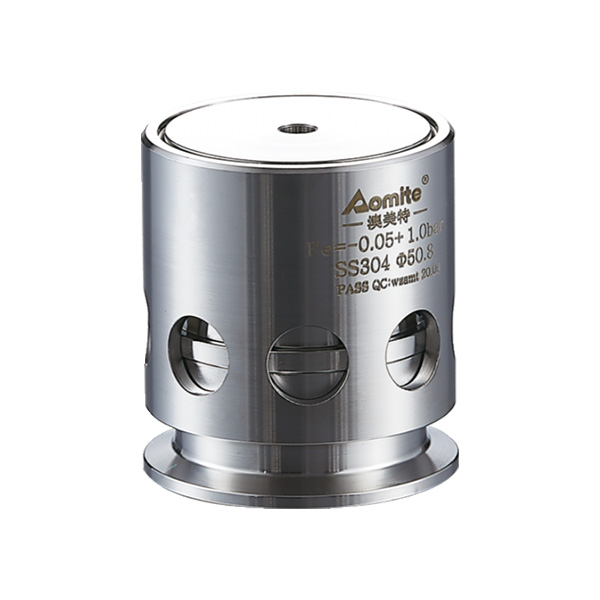

The pressure vacuum relief valve, also known as the exhaust valve, is designed to function within a specific range. It is characterized by its versatility, reliability, and adaptability to various pressures and temperatures. This valve is made from high-quality stainless steel materials, ensuring durability and longevity. The SS304 valve body ensures maximum strength and resistance to corrosion, while the PTFE seal material provides reliable sealing capabilities. The valve's working temperature is limited to 120 degrees Celsius, and its pressure could be customized between 0.3 to 2 bar. It connections tri clamp type making it a easy for maintain. The valve comes in a variety of available sizes, such as 1 1/2" and 2". It is compliant with various standards, such as DIN, SMS, ISO, and IDF. The product is CE certified, providing assurance of its safety and durability. The application of this valve is wide and varied, serving as an effective pressure relief mechanism under set pressure conditions and as an automatic vacuum vent when the system is under vacuum conditions.
Parameter
Type
Safty valve
Customized Support
OEM&ODM
Port Size
1.5" and 2"
connection method
Tri-Clamp /Thread/Customized type
Description
AOMITE VPRV
STAINLESS STEEL MATERIAL
the combination of corrosion resistance, durability, hygiene, aesthetics, and recyclability makes stainless steel pressure relief valve an excellent choice for sanitary liquid equipment .
How to action of the VPRV
The valve will open at 0.03 of vacuum. Open pressure of 1 or 2 bar. (15psi/30psi) it's Non-adjustable
Advantage of Aomite VPRV
Aomite Selfproduce vprv valves boast generous flow capacity through their ports and excel in maintaining stable pressure levels
