In industrial and mechanical systems, maintaining balanced pressure is critical to avoiding catastrophic failures. A lever-type vacuum break valve plays a vital role in safeguarding tanks, pipelines, and equipment from vacuum-induced damage. But how exactly does this valve work, and why is it essential for your operations?
In this guide, we’ll explain the mechanics, applications, and advantages of lever-type vacuum break valves, optimized for engineers, facility managers, and industry professionals.

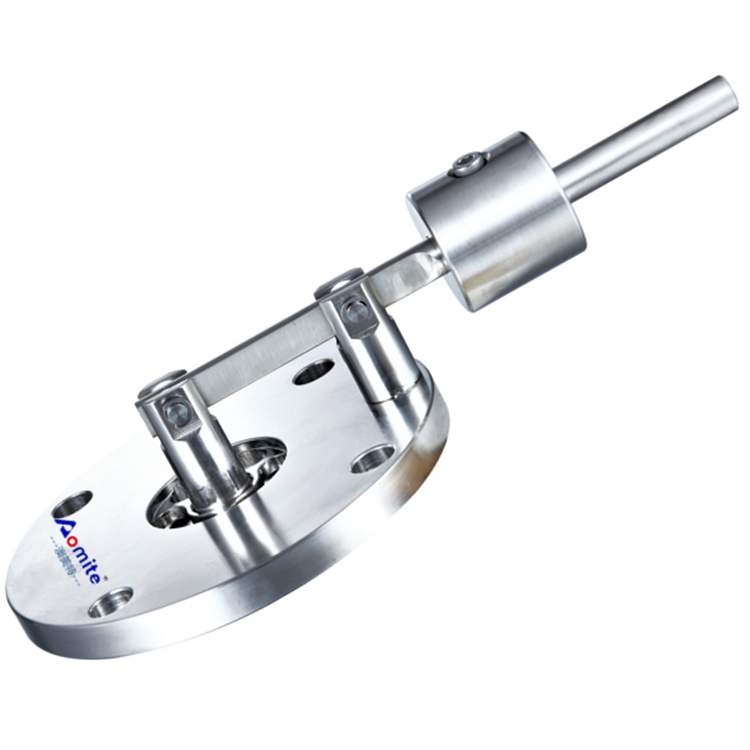

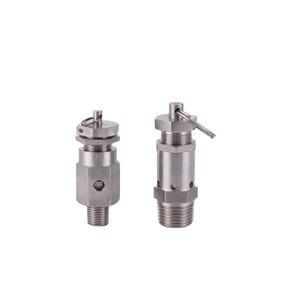

A lever-type vacuum break valve is a mechanical device designed to prevent vacuum formation in closed systems. It automatically opens to allow atmospheric air into the system when internal pressure drops, preventing collapse, implosion, or backflow. Its unique lever mechanism amplifies small pressure changes to trigger rapid response, making it ideal for sensitive applications.
To understand its functionality, let’s break down its core components:
Valve Body: Connects to the system and houses internal parts.
Lever Mechanism: A pivoting arm that magnifies force from pressure changes.
Seal/Diaphragm: Blocks air intake under normal pressure conditions.
Spring or Counterweight: Ensures the valve remains closed unless a vacuum forms.
Under balanced pressure (system pressure = atmospheric pressure), the lever mechanism holds the seal tightly closed, often assisted by a spring or counterweight.
When internal pressure drops (e.g., during rapid drainage, cooling, or pump shutdown), a vacuum forms inside the system. External atmospheric pressure becomes higher than internal pressure.
The pressure differential pushes the diaphragm or piston upward. This force transfers to the lever, which pivots and amplifies the movement, lifting the seal away from the valve opening.
The open valve allows atmospheric air to flow into the system, neutralizing the vacuum and preventing structural damage.
Once pressure stabilizes, the lever mechanism resets (via spring tension, gravity, or counterweight), closing the seal until the next vacuum event.
Prevents Collapse: Protects tanks, pipelines, and vessels from implosion due to vacuum forces.
Avoids Contamination: Stops backflow of liquids or gases in systems like irrigation or chemical processing.
Rapid Response: The lever’s mechanical advantage ensures quick activation even for minor pressure drops.
Low Maintenance: Robust design with minimal moving parts ensures durability.
Versatile Applications: Suitable for water tanks, steam systems, food processing, and industrial pipelines.
Water Storage Tanks: Prevents deformation during rapid drainage.
Steam Condensation Systems: Equalizes pressure as steam cools.
Agricultural Irrigation: Stops backflow into clean water supplies.
Chemical Processing: Safeguards reactors and storage vessels.
HVAC Systems: Protects boilers and heat exchangers.
The lever mechanism provides mechanical advantage, enabling the valve to respond to smaller pressure changes compared to spring-only designs. This makes it ideal for precision applications where even slight vacuums pose risks.
Q: How often should the valve be inspected?
A: Annual inspections are recommended, but frequency depends on usage and environmental conditions.
Q: Can it handle corrosive environments?
A: Yes—stainless steel or coated models are available for harsh industrial settings.
Q: Does it require manual resetting?
A: No. The lever mechanism automatically resets once pressure normalizes.
A lever-type vacuum break valve is a simple yet indispensable component for protecting industrial systems from vacuum-related damage. By combining mechanical leverage with rapid pressure response, it ensures operational safety, efficiency, and longevity.
