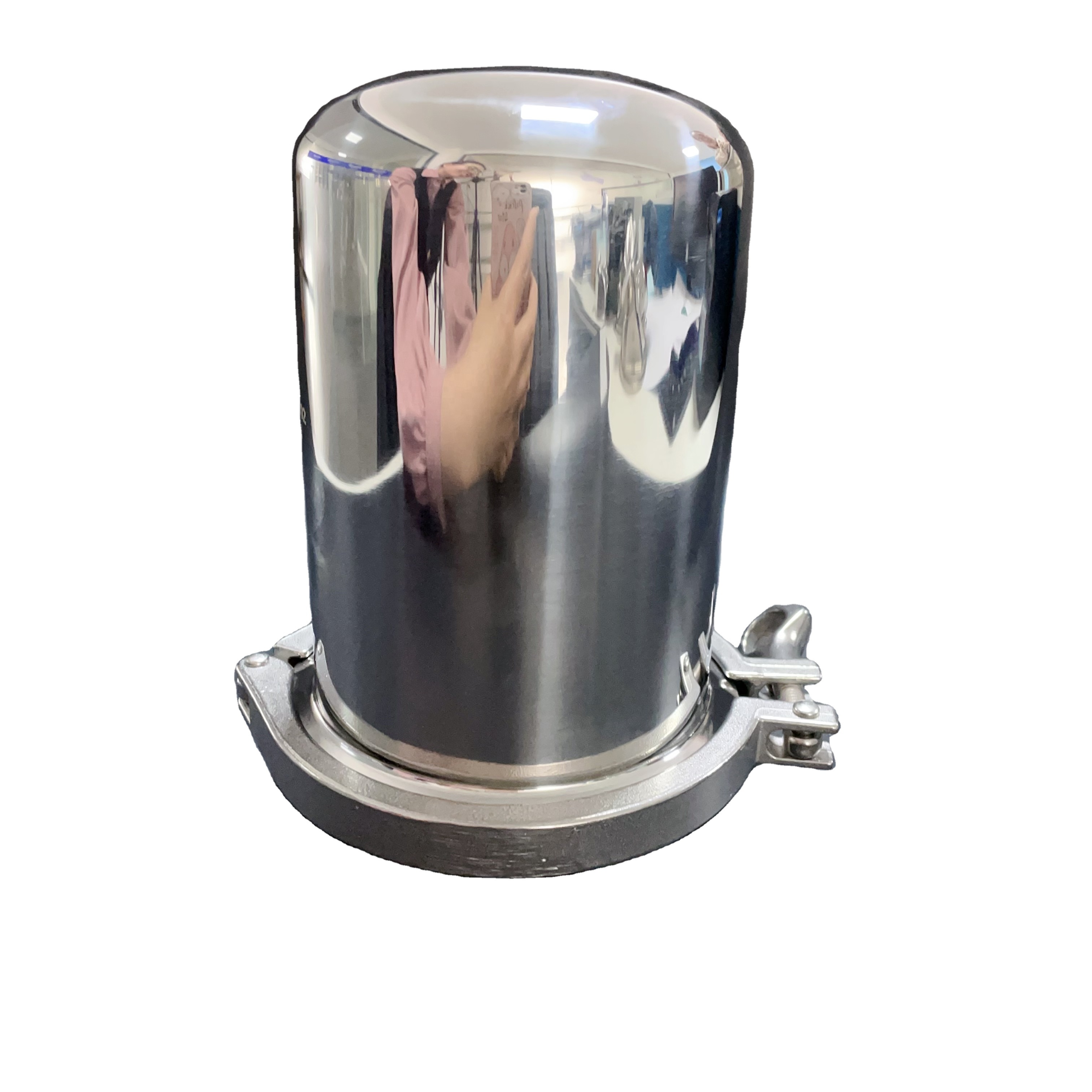

A Brief Introduction To Sanitary Breather

Apply

Ultra-pure water overworry;

Ultra-pure electronic chemical solution filtration;

Fermenter, storage tank, batching tank aseptic exhaust, intake filtration;

High purity gas filtration for electronics industry; High purity steam filtration;

Compressed air without grate transport; Oxidizing gas and liquid filtration;

Solvent, solution, ink, etc

Fine filtration; Pre-filtration for more precise filtration.

material

Cylinder material: (part in contact with the medium) 304/316L Other accessories 304

Connection mode

Welded type, thread type, clamp type

Technical parameter

Interface Model: DN25-DN150 1"-6"

Filter type: 5 "10" 20"

Filter accuracy: 0.10, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0, 10.0 (μm)

Filter material: polytetrafluoroethylene (PTFE), polypropylene (PP), PVDF, nylon (N6, N66),

Type A (without stainless steel lining), Type B (stainless steel lining)

Operating temperature: < 125℃

Number of filter elements: 1-14 (pieces)

Surface treatment: Inner surface treatment Ra≤0.4μm

Outer surface treatment Ra≤0.8μm

How it works:

The filtration principle of the microporous filter is used to prevent the dust particles in the external air from entering the storage tank due to the drop in the liquid level or floating. Ensure the cleanliness of the air in the tank.
