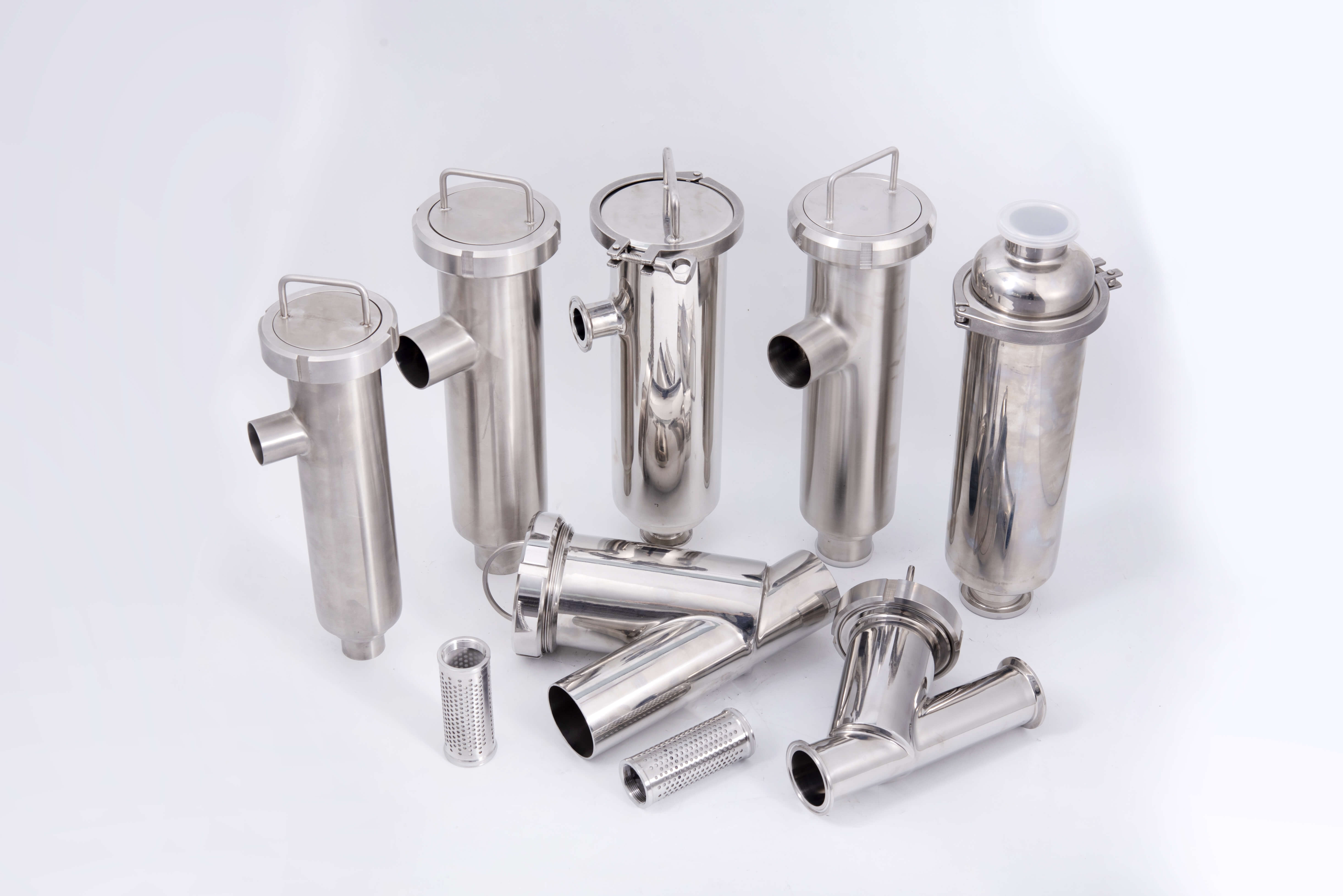

Achieve absolute fluid purity and protect your critical downstream equipment with the Aomite Sanitary Angle Type Filter.
Also known as an L-type strainer, this 90-degree pipeline filter is expertly engineered for high-hygiene applications in the brewing, dairy, pharmaceutical, and beverage industries. It performs exceptionally well in the efficient filtration of hop wort during beer brewing, capturing unwanted solids while maintaining steady flow rates. Housed entirely in high-quality 304 or 316L stainless steel, it features a mirror-polished interior to prevent bacterial adhesion. Equipped with an easily removable 80-mesh stainless screen and your choice of premium seals (Silicone, PTFE, FPM, or EPDM), it ensures streamlined maintenance and zero contamination. Available in standard sizes from DN25 to DN100.
| Size: | |
|---|---|
| Quantity: | |
Ttype
AOMITE
filterT01
| Parameter | Specification |
|---|---|
| Product Name | Sanitary Angle Type Filter / L-Type Strainer |
| Housing Material | AISI 304 or AISI 316L Stainless Steel |
| Filter Screen | 80 Mesh Stainless Steel (Custom micron/mesh sizes available) |
| Available Sizes | DN25(1"), DN32(1.25"), DN40(1.5"), DN50(2"), DN65(2.5"), DN80(3"), DN100(4") |
| Surface Treatment | Mirror-Polished (Smooth, burr-free interior & exterior) |
| Sealing Ring Options | Food-grade Silicone (Standard), PTFE, FPM (Viton), or EPDM |
| Connection Methods | Tri-Clamp (Quick-Install), Welded, Threaded, or Union |
| Primary Applications | Hop wort filtration, dairy processing, pharmaceutical liquid purification |
Stainless Steel Sanitary Angle Filter Quick-Install Welded Hop Wort Angle Filter
This type of filter performs exceptionally well in practical applications, especially in the filtration of hop wort during beer brewing. Its quick-install and welded design makes installation and maintenance more convenient while ensuring efficient and precise filtration. This filter not only meets high hygiene requirements but also excels in durability and operational convenience, making it an ideal choice across various industrial fields.
The above introduction highlights the importance and wide application of stainless steel sanitary angle filters in various industries. Choosing the right filter can enhance product quality, improve production efficiency, and reduce costs. I hope this article provides you with a more comprehensive understanding of stainless steel sanitary filters.
The 80 Mesh Standard (Approx. 177 Microns)
In beer brewing, when transferring hot wort from the boil kettle to the heat exchanger, you must filter out solid hop material (trub) and coagulated proteins. If the mesh is too fine (e.g., 200 mesh), it will instantly clog and halt the pump. If it is too coarse (e.g., 20 mesh), hop particles will pass through and clog the heat exchanger plates. The 80 mesh screen offers the perfect balance—trapping damaging solids while allowing the sticky wort to flow smoothly at high speeds.
90-Degree Flow Redirection: An angle type filter naturally replaces a 90-degree elbow in your piping schematic. This saves valuable space in tight equipment skids while performing dual duties (cornering and filtering).
Easy Screen Extraction: Unlike inline tubular filters where the screen must be pulled out horizontally (often hitting other pipes), the angle filter allows the inner mesh core to be pulled straight out from the top or back, making CIP maintenance and manual rinsing incredibly ergonomic.
